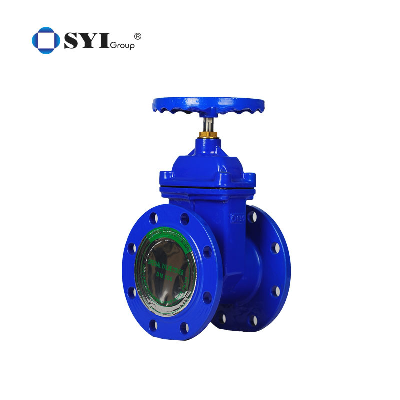

DIN3352 F5 Non-Rising Stem Resilient Seated Gate Valve for Pipeline

SYI High Pressure Din ductile iron gate valveProducts Description:Flat bottom seat ring Integral with the body. inside and outside epoxy resin coating,wedge wholly bonded with rubber. Three "O" ring sealing. these al insure excellent corrosion protection and reliable sealing capability. per request, the gate valves can be actuated by operating lever, hand wheel electrical actuator and so on. STANDARD:Technical Specifications: Design: DIN3352Face to face: DIN3202-F5 Flange drilling: DIN2531 / DIN2532 / DIN2533 / EN1092-2Working temperature: 0-100º CWorking pressure: PN10 / PN16Main Parts and Material:  ItemPart NameMaterialItemPart NameMaterial1BodyGGG505BonnetGGG502DiscGGG50 with NBR/EPDM6HandwheelGGG503Stem NutBrass7O-ringNBR/EPDM4StemStainless Steel   Main Dimensions: Unit: mmDNLDPN10PN16401401501505015016516565170185185801802002001001902202201252002502501502102852852002303403402502504004003002704554553502905055204003105655804503306156405003506707156003907808407004308959108004701015102590051011151125100055012301255120063014551485140071016751685160079019151930180087021152130200095023252345CERTIFICATES & PERFORMANCE:Contact Us:/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
