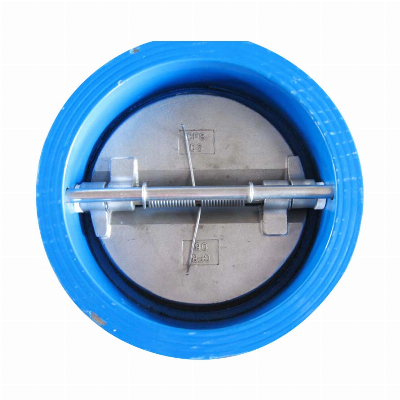

Wafer Type Dual Plate Check Valve Pn16

DUAL PLATE CHECK VALVEIt is used for preventing the back-going of medium in pipelines and equipments, and the pressure of medium will bring the result of opening and closing automatically.When the medium is back-going, valve disc will automaticaly closed to avoid accidents.1) Size: 2" - 24"2) pressure: PN10/16 JIS5K/10K ANSI125/1503) MaterialBody: Ductile iron, cast iron, stainless steel etc.Disc: Ductile iron, carbon steel, stainless steel etc.Stem: SS416Seat: EPDM, VITON, NBR etc.Features:1)Excellent seal, without leakage under the medium pressure.2)Economical, light weight and compact construction3)Easy to install and maintain4)Flange Standard: meeting single or muti standards including DIN PN 10/16, ANSI or JIS standard.5)Working temperature: -10.C~120.C6) Medium: Fresh water, sewage, sea water, air, vapour, acid, alkalis and so on./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
